MAPLE ACE UCP205 Pillow Block Bearing 25mm Bore, 2-Bolt, Self-Aligning, R3 Triple Lip Seal, Heavy Duty (Qty 2)

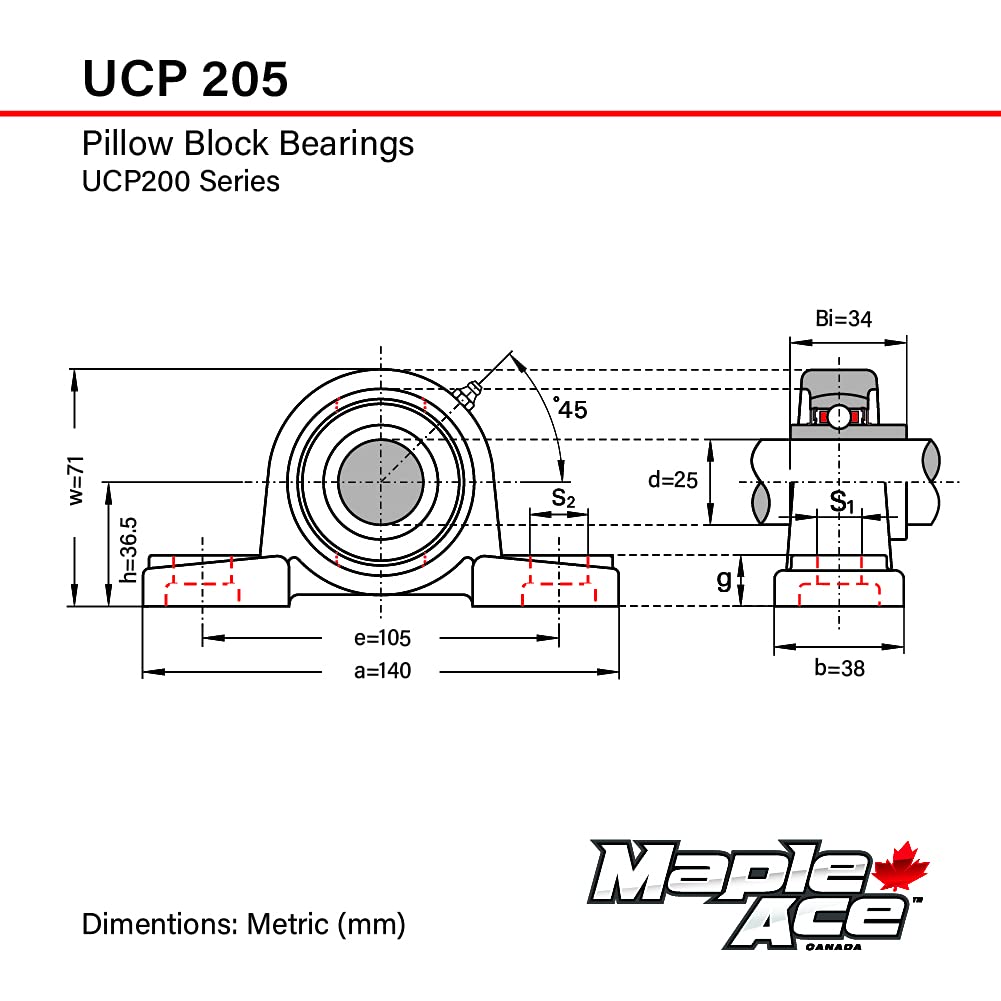

This UCP PILLOW BLOCK MOUNTED BEARING consists of an INSERT BEARING and a CAST IRON housing. The INSERT BEARING has Triple-Lip Seal: Unmatched protection in highly contaminated environments. Ensures significant bearing lifespan in severe dust, sand, slurry, and water. Bearing is Pre-Lubricated with High-Quality Grease, ideal for use in High and Low-temperature settings. Has a Set Screw Lock on its surface for securing the shaft. The PILLOW BLOCK can be mounted on levelled surfaces using the Two Bolt Holes. Grease Fitting Offset on top to Relubricate the bearing. - Specification: Item UCP205R3, Series UCP200, Bearing Number UC205R3, Housing Number P205, Bearing Bore Diameter Metric 25 mm, Bearing Bore Diameter Inch 0.984 in, Bearing Width Inner Ring Matric 34.00 mm, Bearing Width Inner Ring Inch 1.339 in, Bolt Size 3/8 in, Number of Bolts 2, Bolt Hole Center to Center (e) Matric 105 mm, Bolt Hole Center to Center (e) Inch3.134 in, Overall Length (a) Matric 140 mm, Overall Length (a) Inch 5.512 in, Overall Height (w) Matric 71 mm, Overall Height (w) Inch 2.795 in, Overall Width (b) Matric 38 mm, Overall Width (b) Inch 1.496 in, Mounting Surface to Shaft Center (h) Matric 36.5 mm, Mounting Surface to Shaft Center (h) Inch 1.433 in, Dynamic Load Rating Cr 9560 N, Static Load Rating Cor 4750 N, Limiting Speed 9500 r/min, Clearance Normal, Bearing Sealing typeR3 Triple-Lip Seal, Lubrication Type Grease Shell RL2, Lubrication Temperature -20°C to +160°C, Rolling Element Indicator Ball, Bearing Material Gcr15, Housing Material H200 Cast Iron, Locking Type Set Screws, Weight 0.740 KG.

• Exclusively Produced by High Standard Factories
• Ideal for Replacement and OEM Applications
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
• DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
• 100% SATISFACTION GUARANTEED
