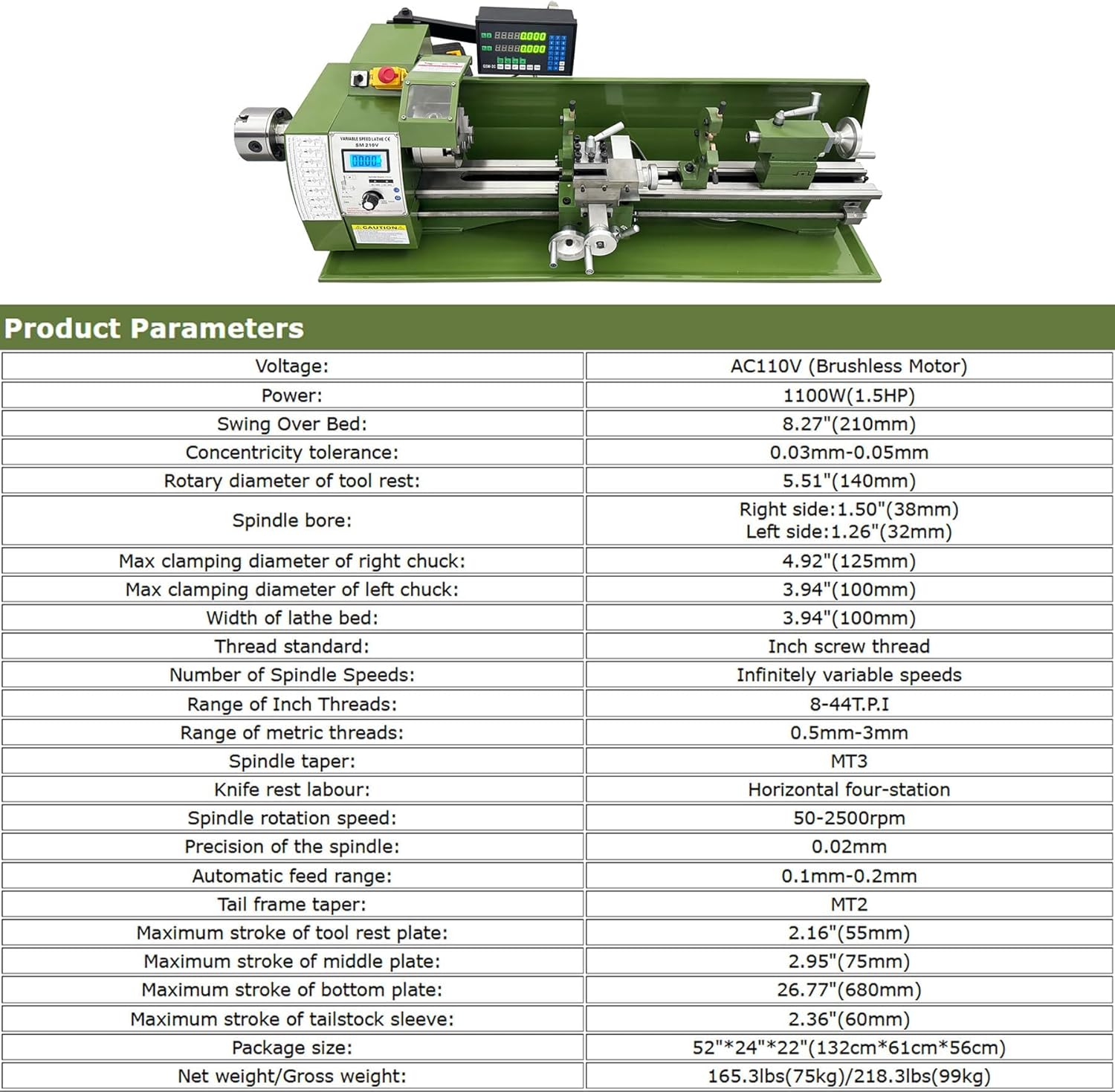

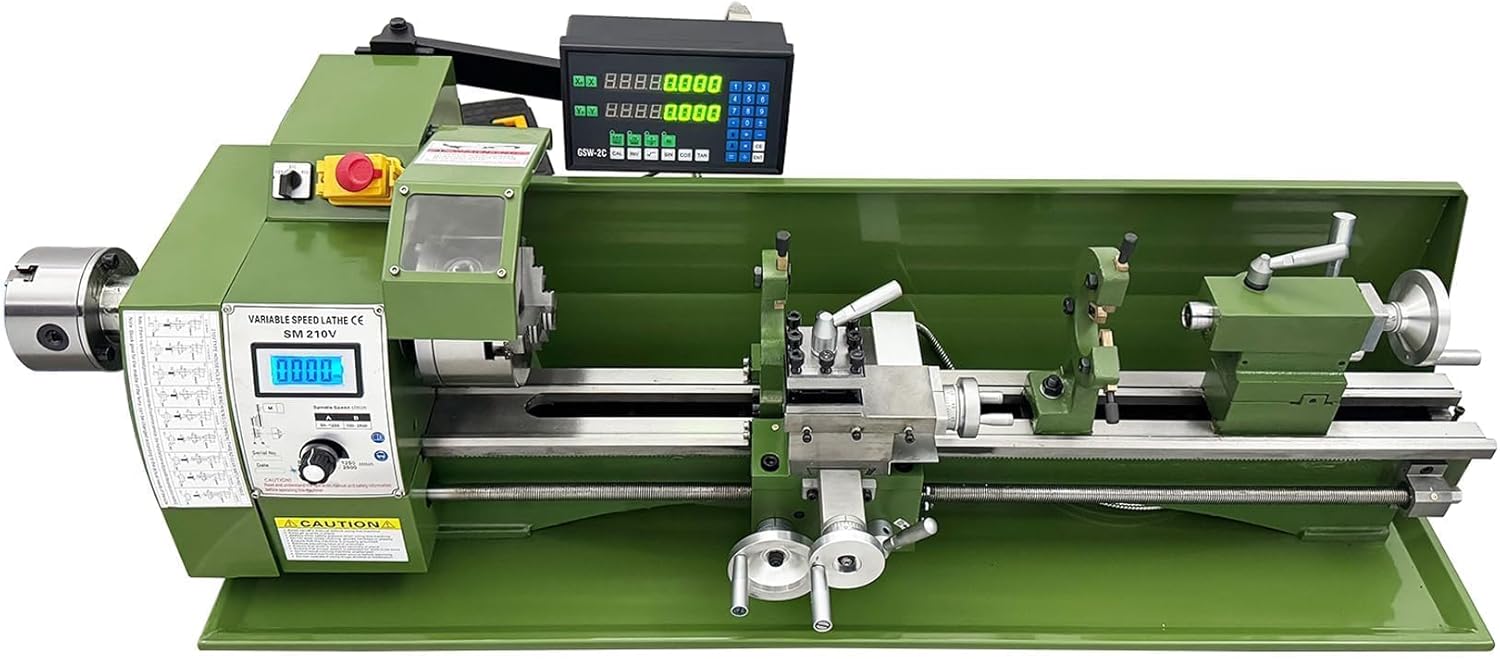

Metal Bench Lathe Benchtop 8"*30" Double Chuck Bench Lathe Inch thread Electronic Gear Lathe for Woodworking Metalworking Variable Speed 50-2500rmp 4-Way Tool Post 110V 1100W
4.2 (139 items)
Limited Time SaleUS$1,134.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221715925 | Release Date | 2026/05/03 | List Price | US$756.00 | Model Number | 221715925 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [Adjustable Speed Control]: This WM210V Metal Bench Lathe is powered by a 1100W 110V brushless motor, providing infinitely variable speeds ranging from 50 - 2500 RPM. Perfect for detailed woodworking and a wide array of metalworking tasks, the digital RPM display allows for precise speed tuning, ensuring accurate machining results.

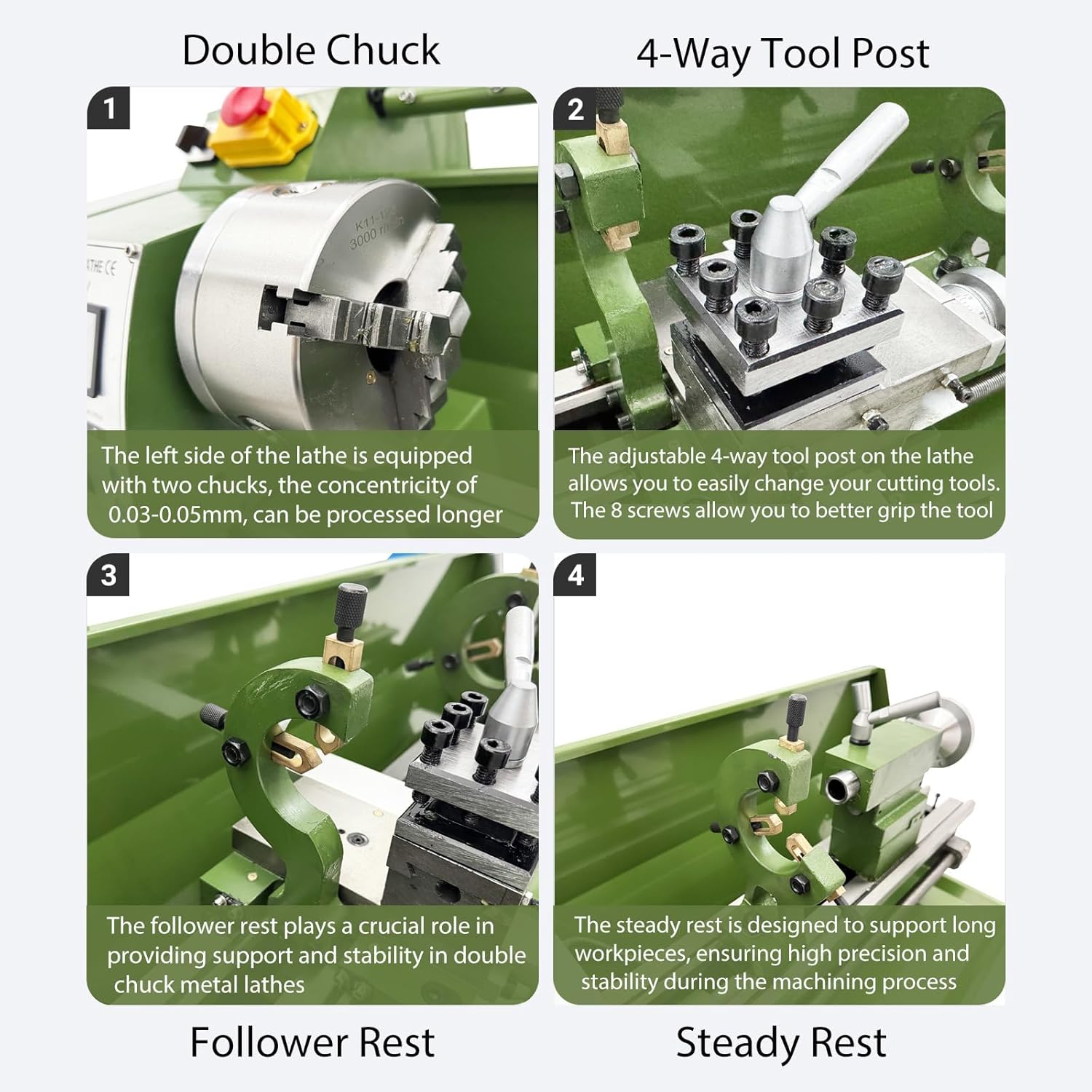

- [Efficient Tool Management]: Outfitted with a horizontal four-station tool post, this lathe enables swift tool changes to boost productivity. The left-side double chucks ensure 0.03-0.05mm concentricity tolerance for processing longer shafts/pipes. The right-side 4.92-inch (125mm) three-jaw chuck securely holds round/square materials. With MT3 spindle taper and 1.50" (38mm) spindle bore, it handles diverse workpiece sizes. The tool rest's 5.51" (140mm) rotary diameter and 8.27" (210mm) swing over bed offer versatility for various machining tasks.
- [Precision Oriented Machining]: The saddle handle, tailstock, and movable center are equipped with precise metric scales, enabling millimeter - level control. The spindle accuracy of 0.02mm and an automatic feed range of 0.1mm - 0.2mm ensure accurate part machining. The maximum stroke of the tool rest plate, at 2.16" (55mm), further aids in precise machining operations.
- [Grating Ruler]: Equipped with a two - axis digital grating ruler, The metalworking lathe enables accurate measurement and control of angles or lengths. With an accuracy of up to 0.005mm, it significantly improves work efficiency and machining precision, ensuring your projects are completed with the utmost accuracy.
- [Enhanced Safety Features]: Protective covers and an emergency stop switch are integrated for operator safety during operation. The user - friendly layout, including forward and reverse switches and feed levers, simplifies setup. In case of an emergency, the safety switch can immediately cut off power, ensuring personal safety.
| Voltage | 110.0 |
|---|---|
| Wattage | 1100.0 |
| Item Weight | 218 pounds |
| Manufacturer | JARYANNIX |
| Power Source | ac |
| Item model number | FT-028374 |
| Package Dimensions | 52 x 24 x 22 inches |

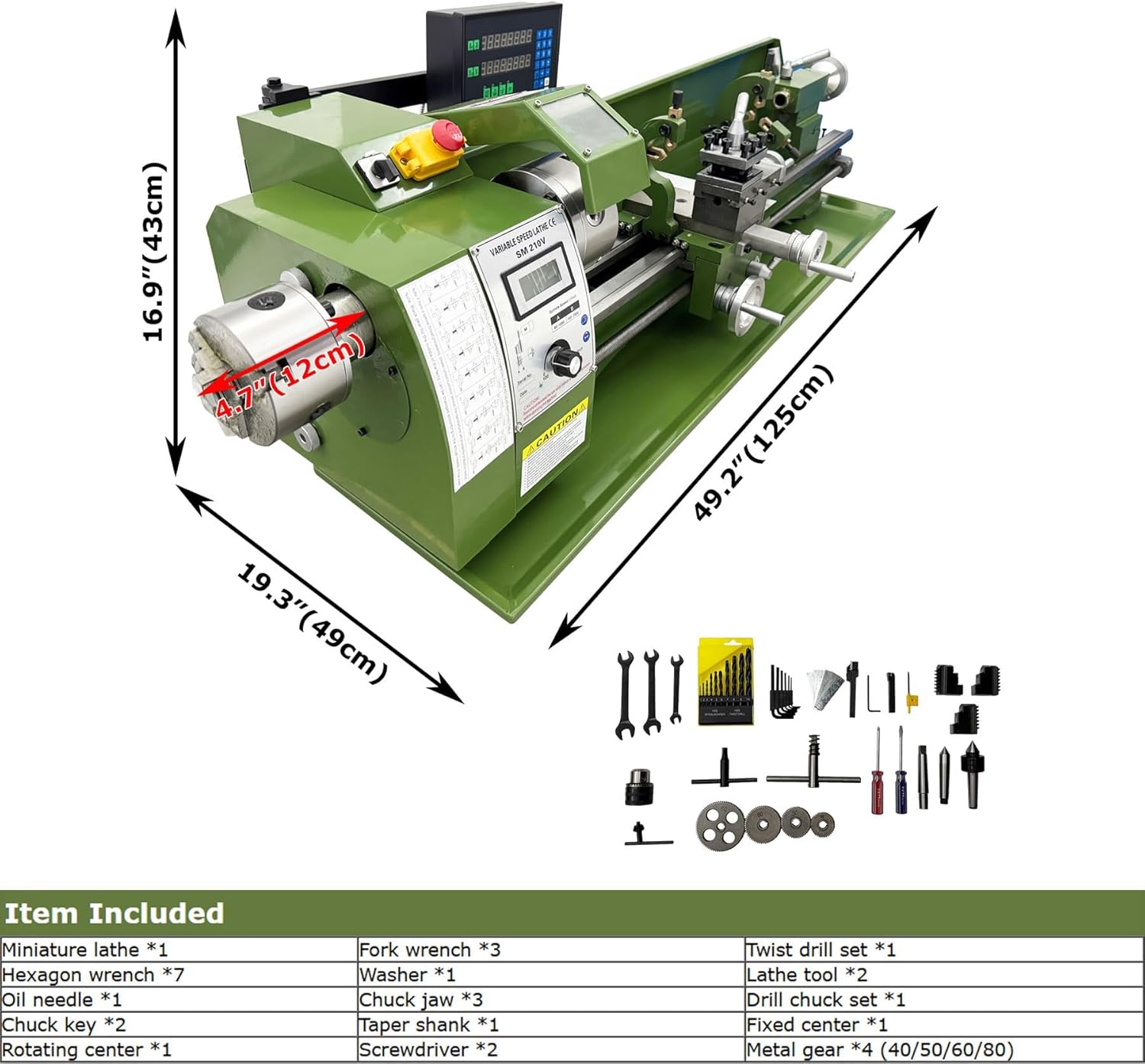

| Included Components | Miniature lathe *1 Fork wrench *3 Twist drill set *1 Hexagon wrench *7 Washer *1 Lathe tool *2 Oil needle *1 Chuck jaw *3 Drill chuck set *1 Chuck key *2 Taper shank *1 Fixed center *1 Rotating center *1 Screwdriver *2 Metal gear *4 (40/50/60/80) |
