Rexnord MT105307 Heavy-Duty Take-Up Block, Cast Iron, Heavy Contact Seal, Regreasable, Non-Expansion, Double Set Screw Locking, 3-7/16" Shaft, 1-13/16" Slot Width, 6-13/16" Between Frames

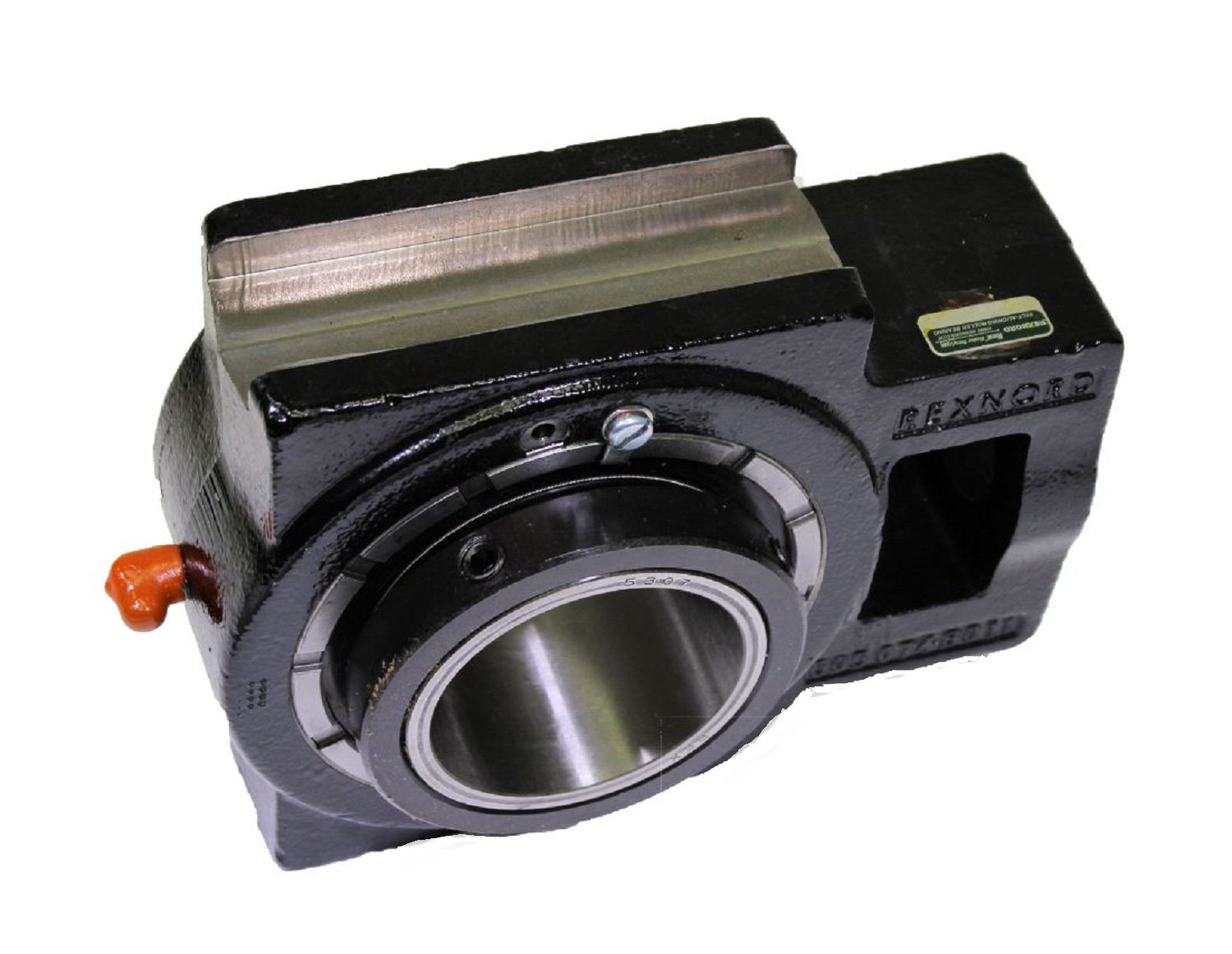

This Rexnord MT105307 heavy-duty mounted spherical roller bearing has a take-up block housing and fits a 3-7/16" shaft. The housing is made of cast iron for rigidity and vibration damping and has a powder coating for resistance to corrosion. It is a regreasable, non-expansion type bearing, with an 84,330 lbf dynamic load rating and a 90,700 lbf static load rating. It has precision-ground, superfinished raceways, a 5-5/16" length through the bore, and can accommodate for dynamic and static misalignment up to 2.0 degrees. It has two set screw locking collars for a secure attachment to the shaft and a spring-loaded, heavy contact seal for resistance to contaminants. The take-up slot is 1-13/16" in width and has a 6-13/16" spacing between frames. This mounted bearing has a maximum rotational speed of 1,400 rpm. Rexnord manufactures power transmission components under brands such as Link-Belt, Thomas, and Stearns, and water management products under brands such as VAG and Zurn. The company is headquartered in Milwaukee, WI.

• Heavy-duty mounted spherical roller bearing with take-up assembly
• Cast iron for rigidity and vibration damping with powder coating for resistance to corrosion
• Two set screw locking collars for secure attachment to shaft
• Spring-loaded, heavy contact seal for resistance to contaminants
• Maximum rotational speed of 1,400 rpm
