Speed Box 3-100:1 Speed Ratio Gearbox for 400w 600w 730w Servo Motor, 80mm Planetary Reducer 19mm Input 7 Arcmin, High Precision Reducer Gearhead (Size : Ratio10)
4.3 (115 items)
Limited Time SaleUS$178.80 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221217672 | Release Date | 2026/05/03 | List Price | US$119.20 | Model Number | 221217672 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

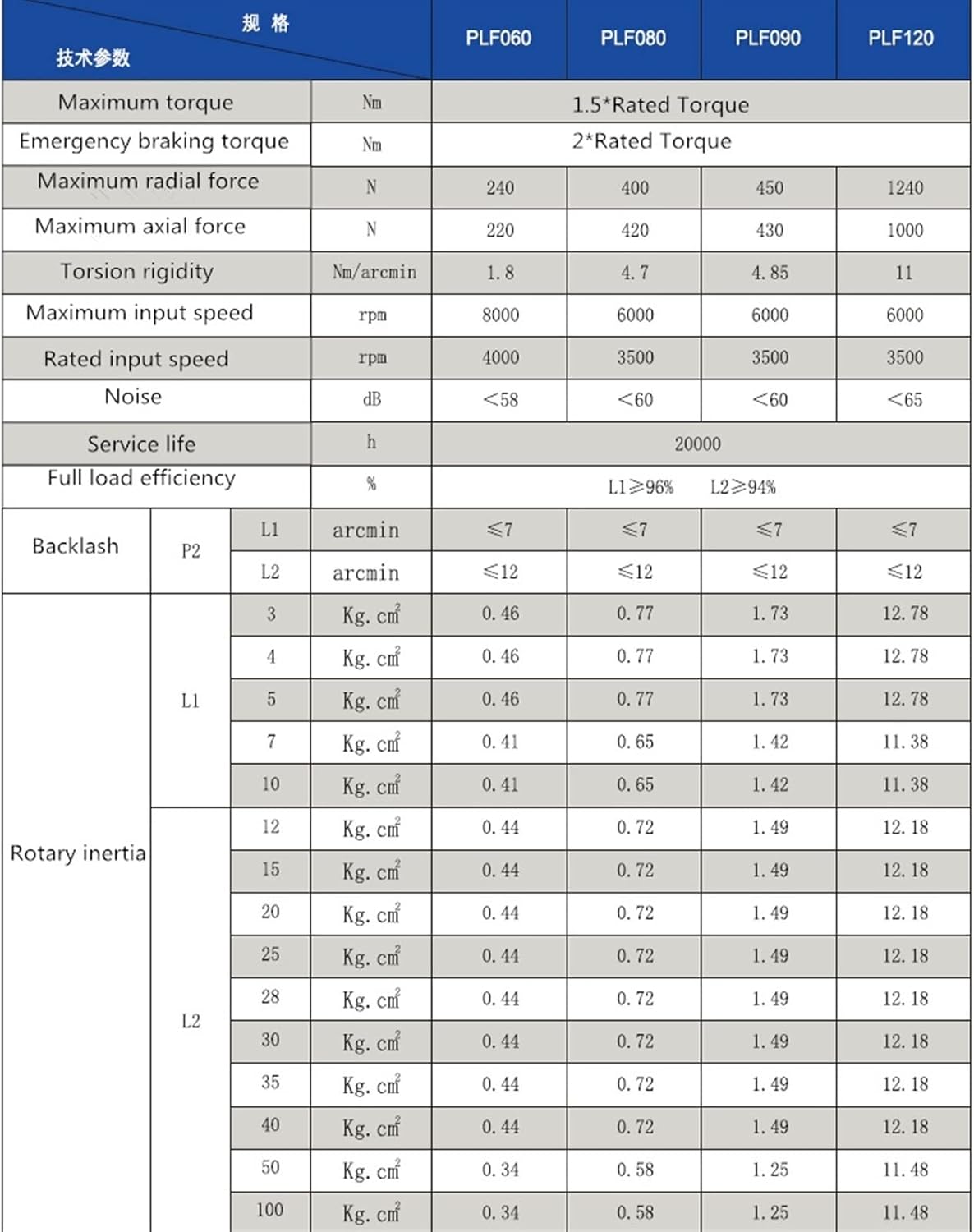

Reducer parameters:Speed Ratio: 1Stage(L1): 3:1 / 4:1/ 5:1 / 7:1 / 10:12Stage (L2):15:1 / 20:1 / 25:1 / 30:1 / 35:1/ 40:1/ 50:1/ 70:1/ 100:1 Product type: Planetary GearboxInput Shaft: 19mm Output Shaft: 20mm Rated torque:22Nm (10:1 / 100:1) ; 48Nm (7:1 / 70:1 );50Nm (3:1 / 15:1/ 30:1) ;90Nm (4:1 / 5:1 / 20:1 / 25:1 / 35:1 / 40:1 / 50:1 )Maximum torque: 1.5* Rated torqueEmergency braking torque: 2.5* Rated torque Body length: L1=102.5mm, L2=124.5mmBacklash Precision:L1 7 Arcmin , L2 12 Arcmin Max radial force: 400NMax axial force : 420NTorsion rigidity: 4.7Nm/arcminMax input speed: 6000rpmRated input speed: 3500rpmNoise:less than 60dBFull load efficiency:L196%, L2 94%Package Included :1X Planetary reducer
- Input Shaft: 19mm Output Shaft: 20mm .

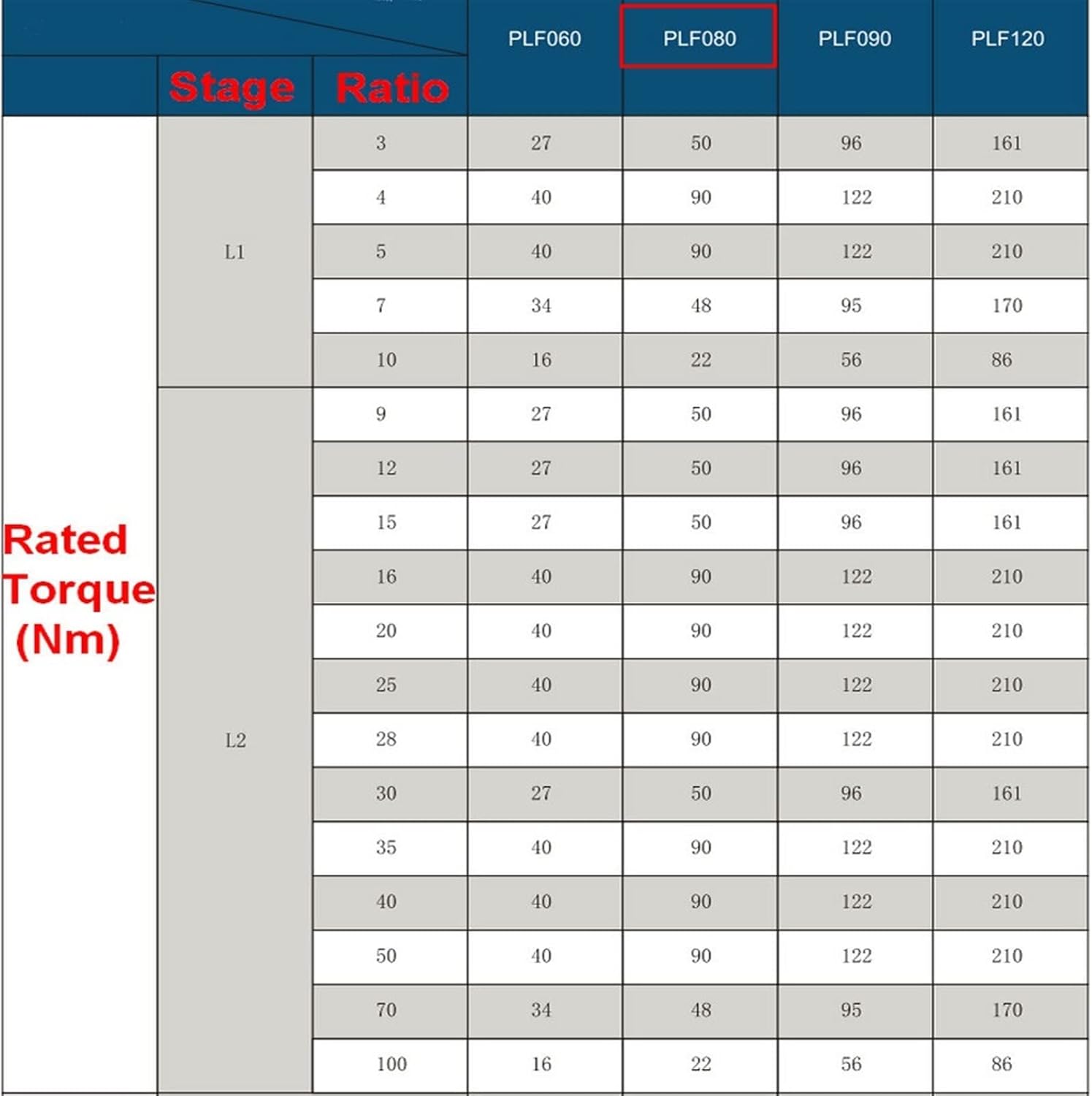

- Rated torque:22Nm (10:1 / 100:1) .
- Max radial force: 400N; Max axial force : 420N.
- Low friction motor, low operating noise , easy operation.
- High transmission efficiency, wide speed range, high precision.
| Brand Name | WUDOLI |
|---|---|
| Unit Count | 1.0 Count |
| Item Weight | 100 Grams |
| Part Number | WUDOLI |
| Manufacturer | WUDOLI |
